200T
1
Performance characteristics:

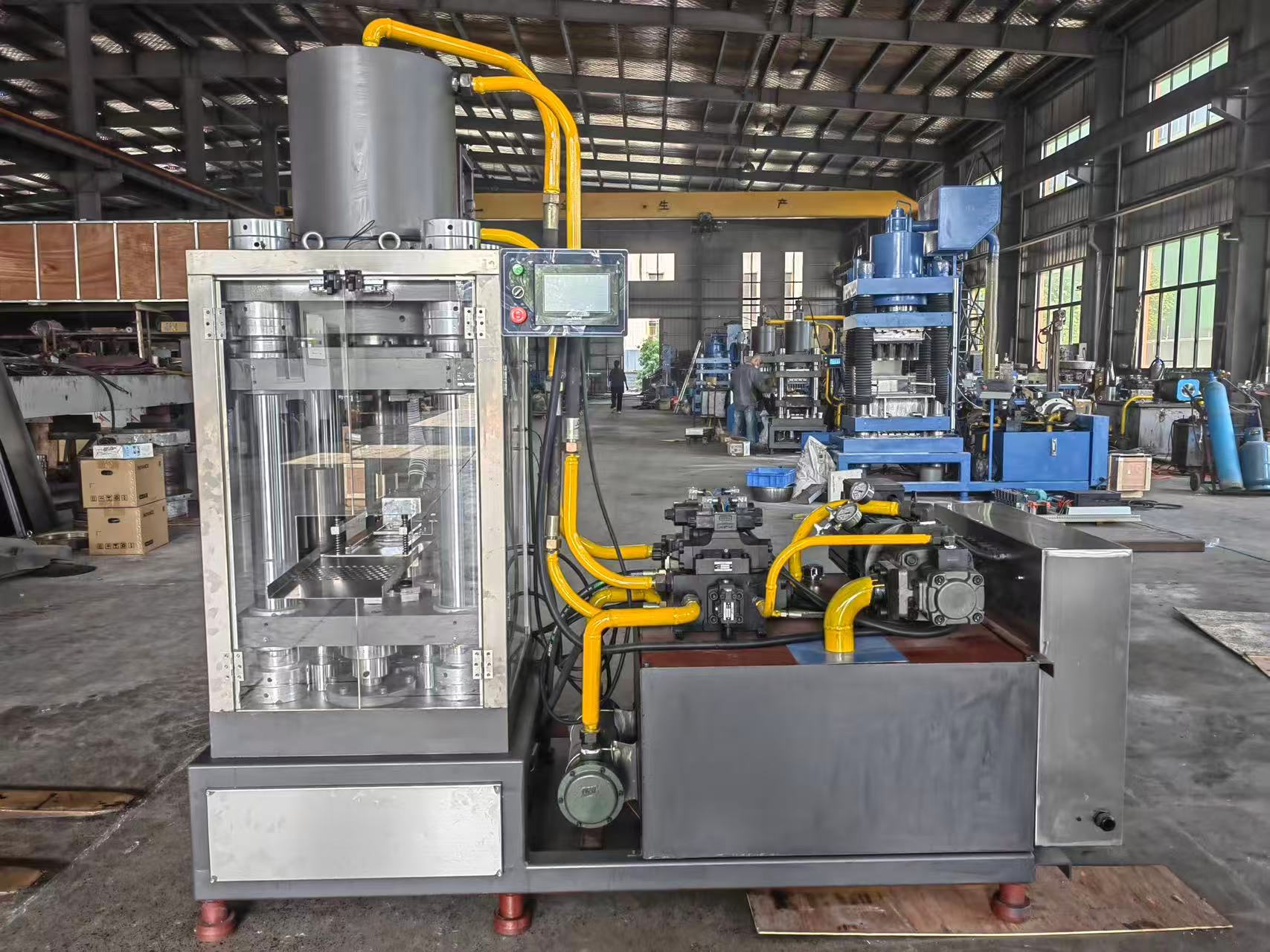

This machine is a four column powder forming machine, which can achieve multi cavity mold pressing and holding, greatly improving production efficiency.. The electrical control system is controlled by a computer system, and the time can be adjusted according to the processing situation. It can achieve both automatic and manual working modes. The working pressure and the stroke range of the slider can be adjusted according to the process requirements, and can complete two process methods of fixed pressure and fixed stroke forming. The process of constant pressure forming has a pressure holding and delayed automatic return action after compression.
The main technical parameters are as follows：
Work pressure: 200T | Top output: 100T |
Motor power: 18.7KW | Maximum diameter of the middle mold: 400mm (customizable) |
Loading height: 250mm (customizable) | Maximum compression diameter: 300mm (customizable) |
Production: 3-4 times | Maximum working pressure: 25MPa |
Equipment weight: 3.65T | Equipment size: 2800 * 1200 * 3300 |
Performance characteristics:
This machine is a four column powder forming machine, which can achieve multi cavity mold pressing and holding, greatly improving production efficiency.. The electrical control system is controlled by a computer system, and the time can be adjusted according to the processing situation. It can achieve both automatic and manual working modes. The working pressure and the stroke range of the slider can be adjusted according to the process requirements, and can complete two process methods of fixed pressure and fixed stroke forming. The process of constant pressure forming has a pressure holding and delayed automatic return action after compression.
The main technical parameters are as follows：
Work pressure: 200T | Top output: 100T |
Motor power: 18.7KW | Maximum diameter of the middle mold: 400mm (customizable) |
Loading height: 250mm (customizable) | Maximum compression diameter: 300mm (customizable) |
Production: 3-4 times | Maximum working pressure: 25MPa |
Equipment weight: 3.65T | Equipment size: 2800 * 1200 * 3300 |
