TS8-250C-P
SUPM
1

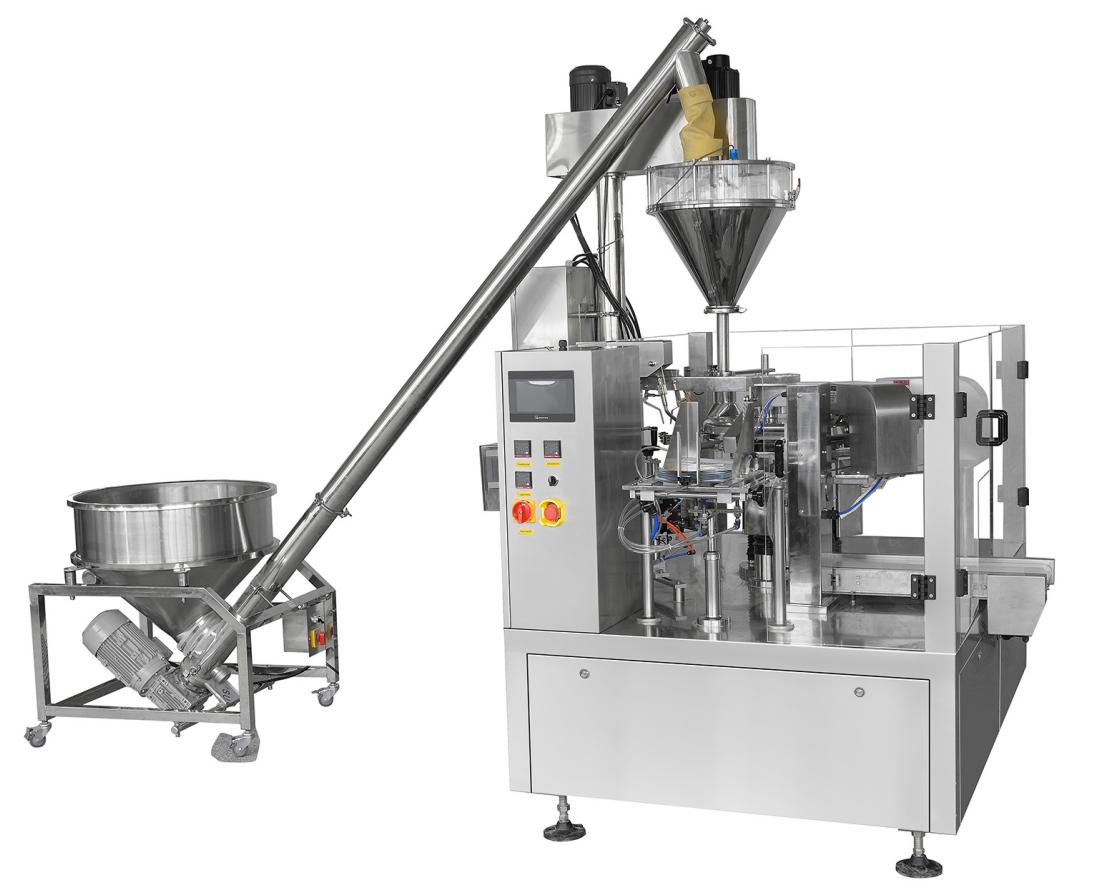

TS8-250C-P Powder packing production line
Scope of application:
This equipment is composed of a bag packaging machine, a screw scale, and a spiral feeding machine, mainly suitable for automatic measuring and packaging of powder materials.
Main performance characteristics:
1. Easy to operate: using PLC control and human-machine interface operating system, making the operation intuitive and convenient;
2. Easy adjustment: Changing varieties can be completed within about two minutes;
3. Suitable for different types of packaging bags;
4. A comprehensive prevention system ensures high yield and prevents wastage of bags and materials;
5. The packaging of the machine is made of stainless steel material to ensure the hygiene and safety of the materials;
6. The machine adopts a fully automatic detection device to achieve automation of the packaging process, reduce labor intensity for workers, and save labor.
7. Partial use of imported engineering plastics, no need for refueling, reducing material pollution;
8. Adopting oil-free vacuum pump to avoid polluting the production environment.
Main technical parameters：
model | TS8-250C |
Packaging type | Flat bag, three sided seal, four sided seal, self-supporting bag, etc |
Packaging bag material | Composite film, PP, PE, etc. |
Bag size | W:100-250mm L:150-350mm |
Weight range | 10-2000g |
Packaging speed | 20-40 bags per minute (Its speed is determined by the material itself and the weight of the filling) |
Gas consumption | 0.4m3/min |
Packaging accuracy | ≤±1% |
power supply | 4.75KW,AC220V,60Hz |

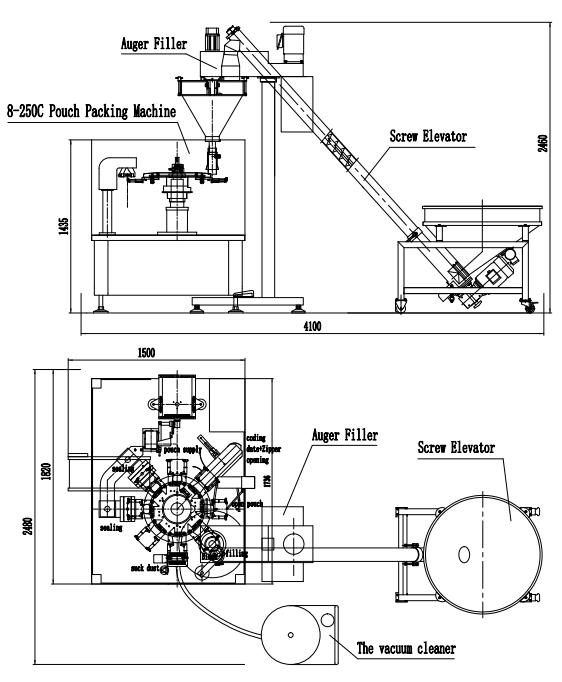

Machine dimensions | 4300*1650*2450mm |
weight | 2200kg |
